Implementing Mask R-CNN: Advanced Object Detection and Segmentation

In modern computer vision, object detection and image segmentation, particularly semantic segmentation, are foundational technologies, each with distinct capabilities and limitations. Object detection identifies objects and localizes them with bounding boxes, while semantic segmentation assigns each pixel a class label without distinguishing individual instances. These approaches serve many purposes, but both fall short when applications require both precise boundaries and the separation of individual objects.

This is where instance segmentation proves invaluable. Instance segmentation combines the strengths of detection and segmentation: each object is not only located by a bounding box but also represented at the pixel level with a precise object mask. When objects overlap or appear partially occluded, common scenarios in real-world applications, instance segmentation provides clarity that other methods cannot.

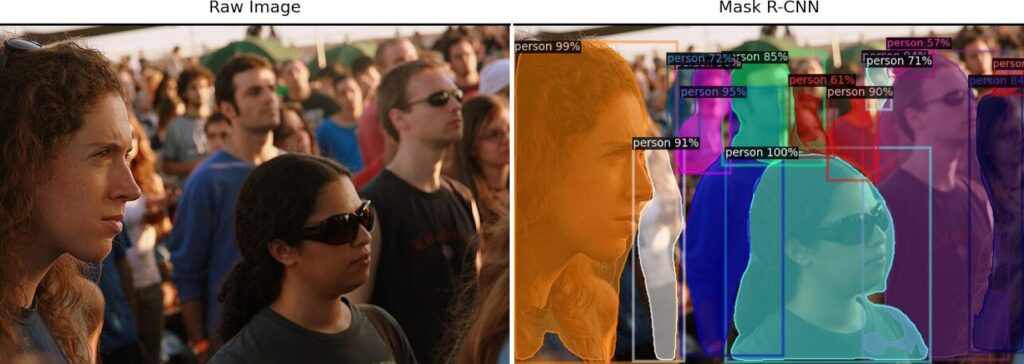

Mask R-CNN stands as one of the most influential frameworks for instance segmentation. Building on the successes of Faster R-CNN, the Mask R-CNN framework extends traditional bounding box recognition with object instance segmentation, predicting segmentation masks alongside bounding boxes and class labels. By providing pixel-level precision and distinguishing individual instances, Mask R-CNN outperforms traditional object detection methods in complex real-world scenarios.

In this article, we’ll explore how Mask R-CNN works, demonstrate its implementation using FiftyOne, and examine its practical applications across multiple domains.

There’s also a companion Jupyter notebook demonstrating how to:

• • Set up a small Mask R-CNN instance segmentation dataset

• • Run inference using Detectron2

• • Visualize results interactively in FiftyOne

• • Evaluate segmentation accuracy and explore failure cases

• • Consider strategies for fine-tuning Mask R-CNN

Work through this notebook to replicate these methods on your data and gain insights into Mask R-CNN’s real-world performance.

Understanding Mask R-CNN Architecture

Mask R-CNN outperforms earlier models primarily due to its carefully refined architecture. While traditional methods focus primarily on bounding box recognition, Mask R-CNN introduces object instance segmentation, predicting detailed pixel-level masks alongside bounding boxes and class labels, making it particularly effective in complex scenes. Let’s break down the key architectural components of the Mask R-CNN framework:

Backbone Network (ResNet/FPN)

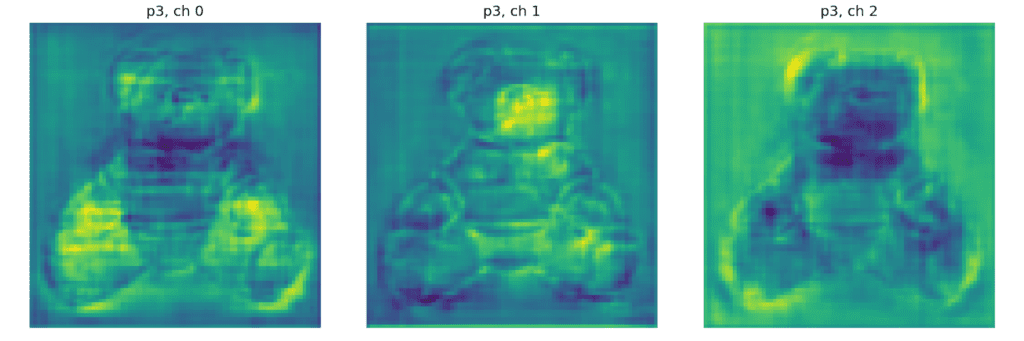

The foundation of Mask R-CNN is a deep convolutional backbone network, typically ResNet, which extracts feature maps from the input image. Earlier layers capture basic elements like edges and corners, while deeper layers recognize complex shapes and patterns.

This backbone is enhanced with a Feature Pyramid Network (FPN) that generates multi-scale feature representations. The FPN enables the model to detect objects at various sizes—a critical capability when scenes contain both large, prominent objects and small, distant ones.

Region Proposal Network (RPN)

The Region Proposal Network generates candidate bounding boxes (called anchor boxes) that likely contain objects. This focuses computational resources on promising regions rather than exhaustively scanning every pixel. The RPN classifies proposed regions as either foreground (potentially containing objects) or background, efficiently filtering out unlikely areas.

ROI Align Layer

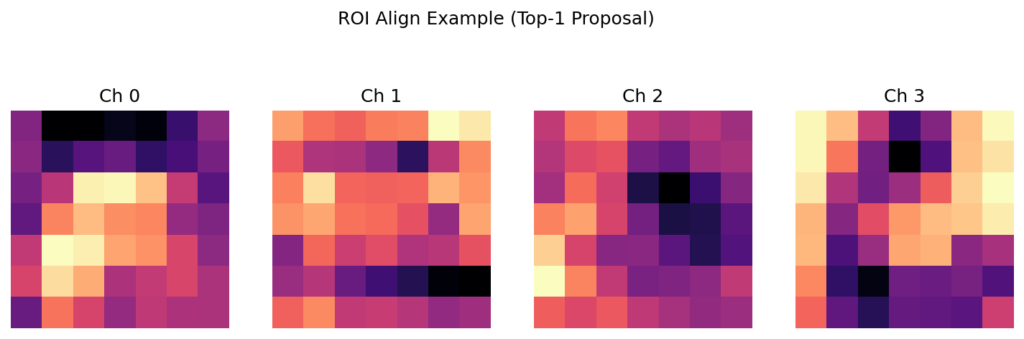

One of Mask R-CNN’s key innovations is the ROI Align layer. Earlier R-CNN variants used ROI Pooling, which discretized bounding box features and lost spatial precision. ROI Align maintains exact spatial correspondence through bilinear interpolation, preserving the precise pixel-level details needed for accurate mask generation. This improvement is particularly important for small objects or those with intricate boundaries.

Head Networks

Mask R-CNN employs multiple specialized network “heads” that operate on the features extracted from each region:

• • Classification Branch: Identifies the object class (e.g., “person,” “car,” “dog”) for each proposed region

• • Bounding Box Regression Branch: Fine-tunes the bounding box coordinates for more accurate localization

• • Mask Branch: Outputs a binary segmentation mask for each detected object, providing pixel-precise boundaries



Multi-Task Loss Function

During training, Mask R-CNN optimizes a combined loss function that accounts for classification accuracy, bounding box precision, and mask quality. By simultaneously addressing all three objectives, the network learns to perform detection and segmentation in a unified and coherent manner.

Implementing Mask R-CNN

Dataset Preparation

When building an instance segmentation model, your dataset must include pixel-level masks rather than just bounding boxes. Common choices include:

• • COCO: A large-scale dataset with 80 object categories and instance segmentation annotations

• • Cityscapes: Specialized dataset for urban scenes with detailed annotations for traffic participants

For smaller-scale projects or demonstrations, consider using a subset of these datasets. However, for production systems, comprehensive data that matches your target domain is essential. Instance segmentation demands precise labeling, as inaccurate boundaries will propagate through to your model’s predictions.

Choosing a Framework

Several well-maintained libraries simplify Mask R-CNN implementation:

• • Detectron2 (Facebook AI Research): Provides robust model implementations with various backbones (ResNet-50, ResNeXt, etc.)

• • MMDetection (OpenMMLab): Offers modular components and extensive configuration options

For most applications, Detectron2 provides an excellent balance of performance and ease of use, with pre-trained models that can run inference with minimal setup.

Code Example: Pretrained Mask R-CNN Inference

Here’s a concise example showing the core steps for running inference with a pre-trained Mask R-CNN model:

import cv2
from detectron2.config import get_cfg
from detectron2 import model_zoo
from detectron2.engine import DefaultPredictor

cfg = get_cfg()
cfg.merge_from_file(
    model_zoo.get_config_file("COCO-InstanceSegmentation/mask_rcnn_R_50_FPN_3x.yaml")
)
cfg.MODEL.WEIGHTS = model_zoo.get_checkpoint_url(
    "COCO-InstanceSegmentation/mask_rcnn_R_50_FPN_3x.yaml"
)
cfg.MODEL.ROI_HEADS.SCORE_THRESH_TEST = 0.5
cfg.MODEL.DEVICE = "cuda"
predictor = DefaultPredictor(cfg)

image_bgr = cv2.imread("example.jpg")
image_rgb = cv2.cvtColor(image_bgr, cv2.COLOR_BGR2RGB)

outputs = predictor(image_rgb)
instances = outputs["instances"].to("cpu")

boxes = instances.pred_boxes.tensor.numpy()
scores = instances.scores.numpy()
class_ids = instances.pred_classes.numpy()
masks = instances.pred_masks.numpy()

While using a pre-trained model works well for many applications, you can fine-tune Mask R-CNN on a custom dataset if your domain diverges significantly from standard benchmarks. This typically involves registering your dataset with the framework, adjusting hyperparameters, and potentially customizing the backbone architecture.

Leveraging FiftyOne for Mask R-CNN

Mask R-CNN provides accurate image segmentation, but FiftyOne takes a critical step further by enabling a data-centric approach to model development . FiftyOne is a tool that enables a data-centric approach to visual AI development, whether it’s fine-tuning Mask R-CNN or building and evaluating custom models. The App and Python library helps you visualize results, evaluate performance, discover dataset issues, and iteratively refine your workflow.

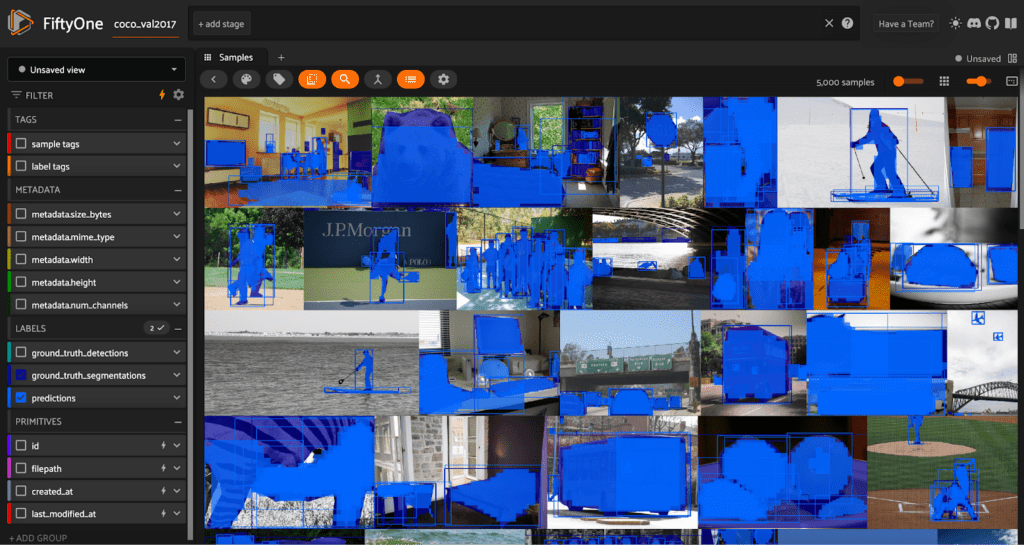

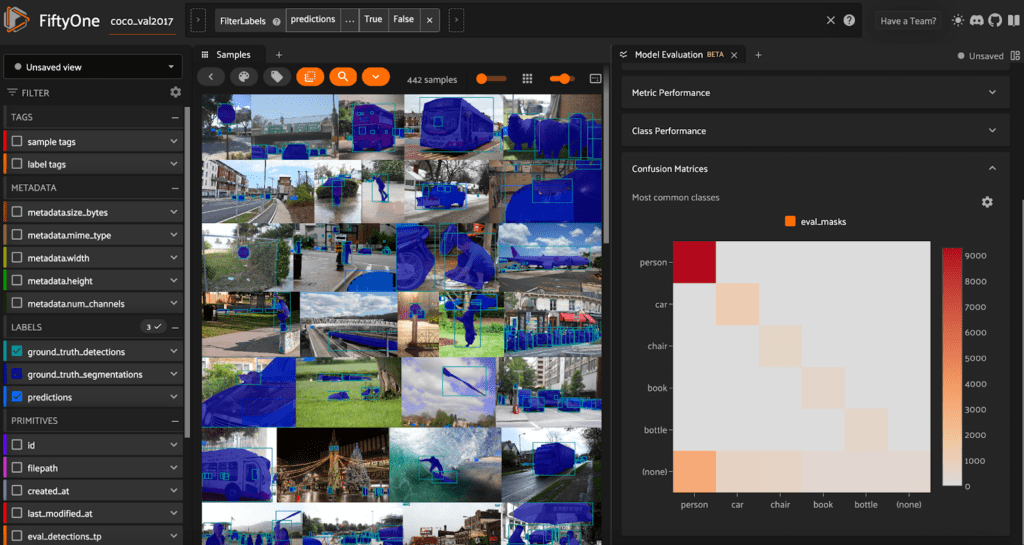

The FiftyOne App displays ground truth segmentations and detections side by side, enabling data-centric exploration and iterative refinement.

Dataset Integration

The following code shows how you can load a dataset into FiftyOne. This example loads a subset of the COCO dataset and its ground truth labels.FiftyOne seamlessly imports datasets in COCO format with a single command:

import fiftyone as fo

dataset = fo.Dataset.from_dir(
    dataset_dir="coco_small",
    dataset_type=fo.types.COCODetectionDataset,
    data_path="images",
    labels_path="annotations/instances_val2017_50.json",
    name="coco_val2017_50",
    label_field="ground_truth_detections"
)

This automatically populates bounding boxes and instance segmentation data into a FiftyOne dataset. After running Mask R-CNN inference, predictions can be stored in a separate field, enabling direct comparison against ground truth.

The FiftyOne App displays ground truth segmentations and detections side by side, enabling data-centric exploration and iterative refinement.

Visualizing and Exploring Data

FiftyOne’s interactive App provides a powerful environment to:

FiftyOne’s interactive App provides a powerful environment to:

• • View individual images with toggleable label fields (e.g., switch between ground truth and predictions)

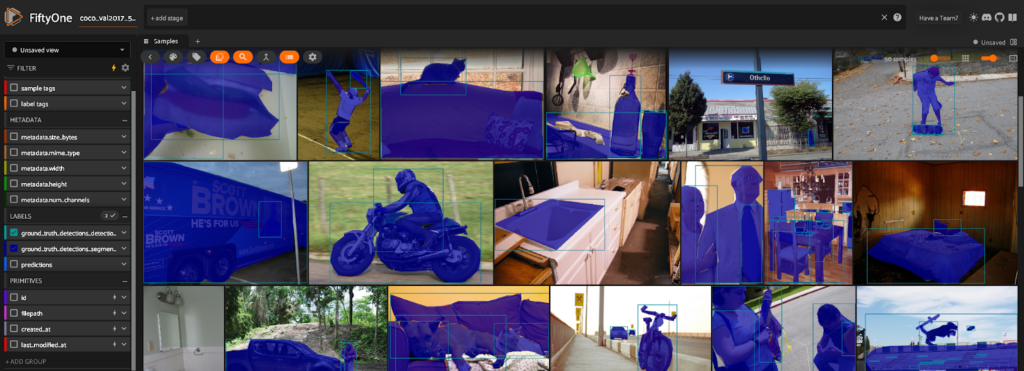

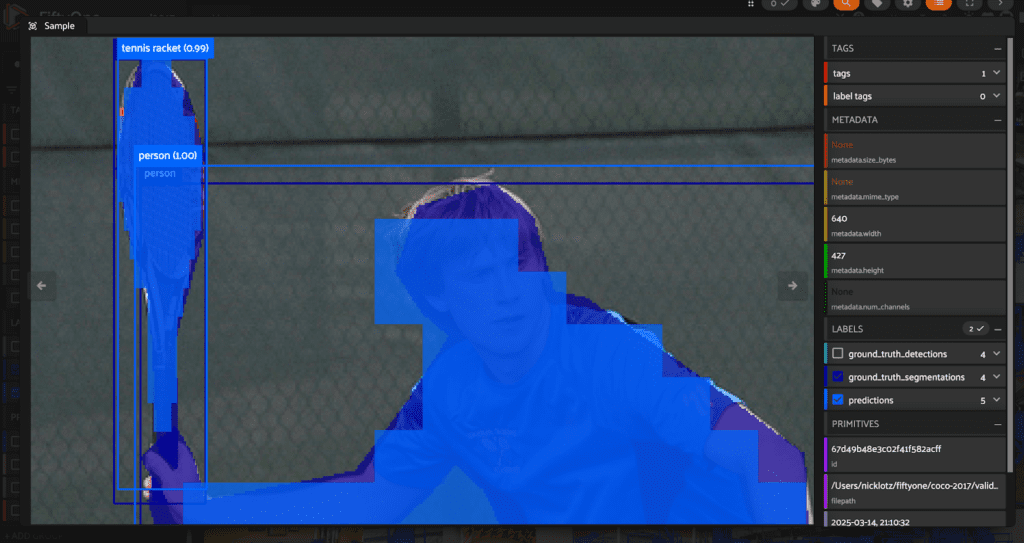

This view of the COCO dataset shows ground truth segmentations (purple) overlaid with Mask-RCNN model predictions (blue).

• • Filter predictions by confidence to identify false positives

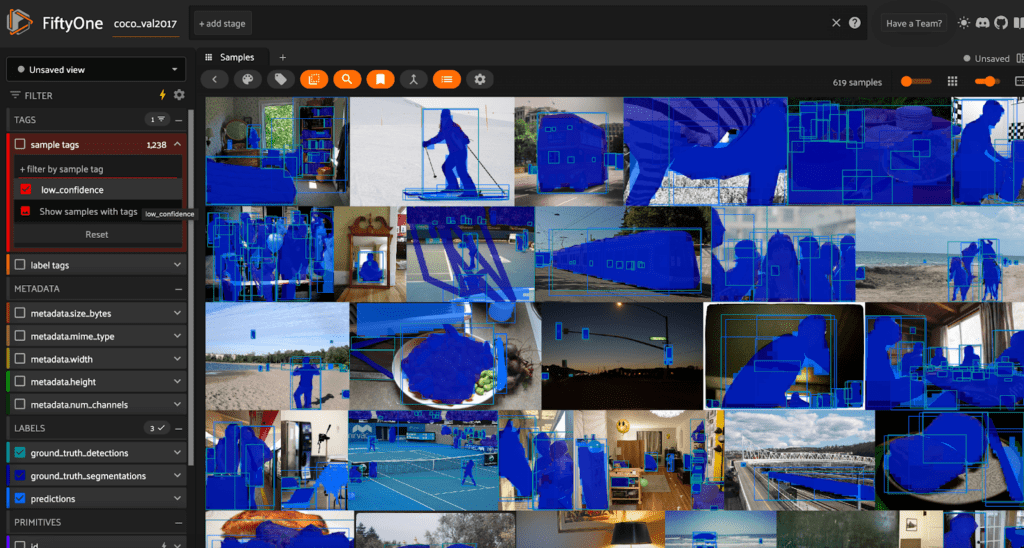

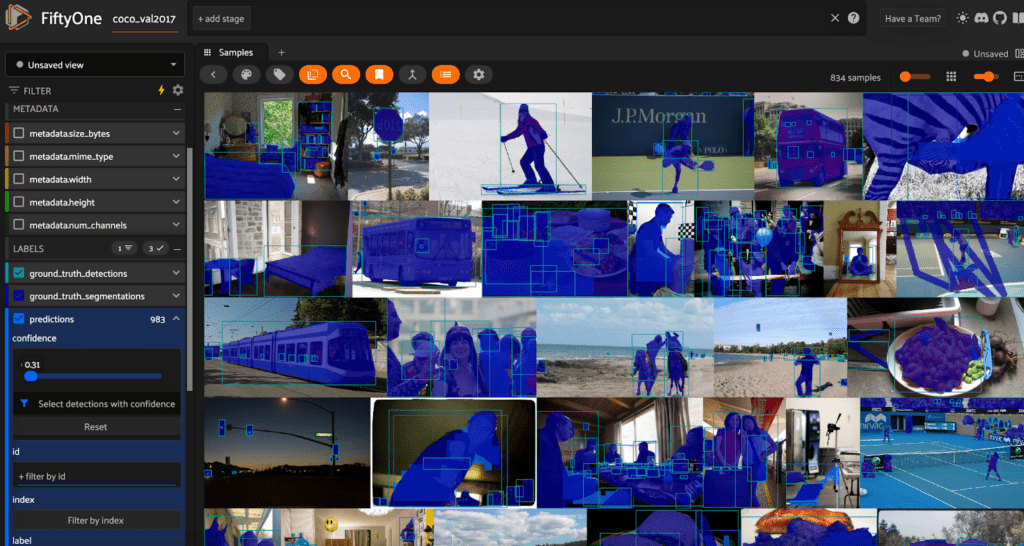

Here, the dataset is filtered to only show samples with a low prediction confidence threshold

• • Examine class distributions to check for imbalances

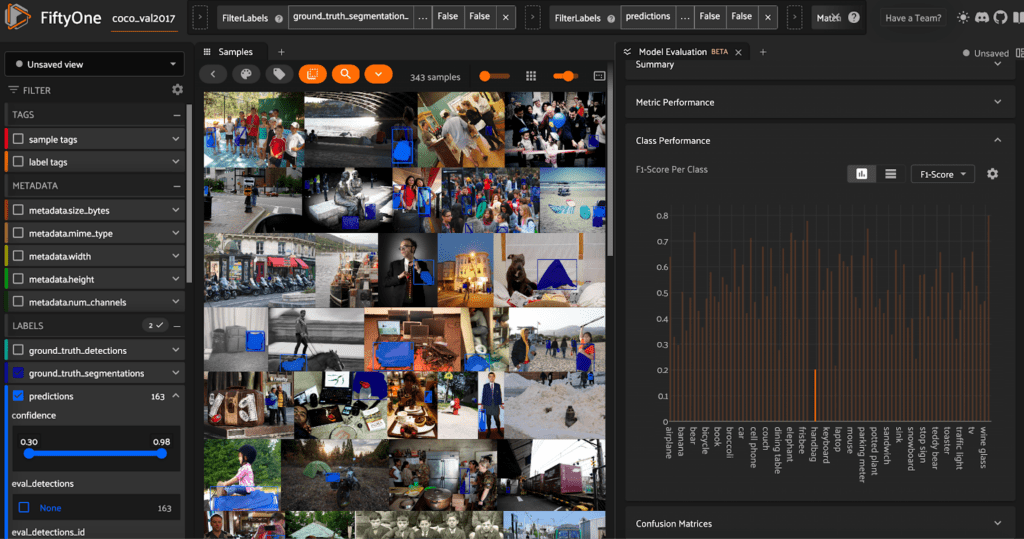

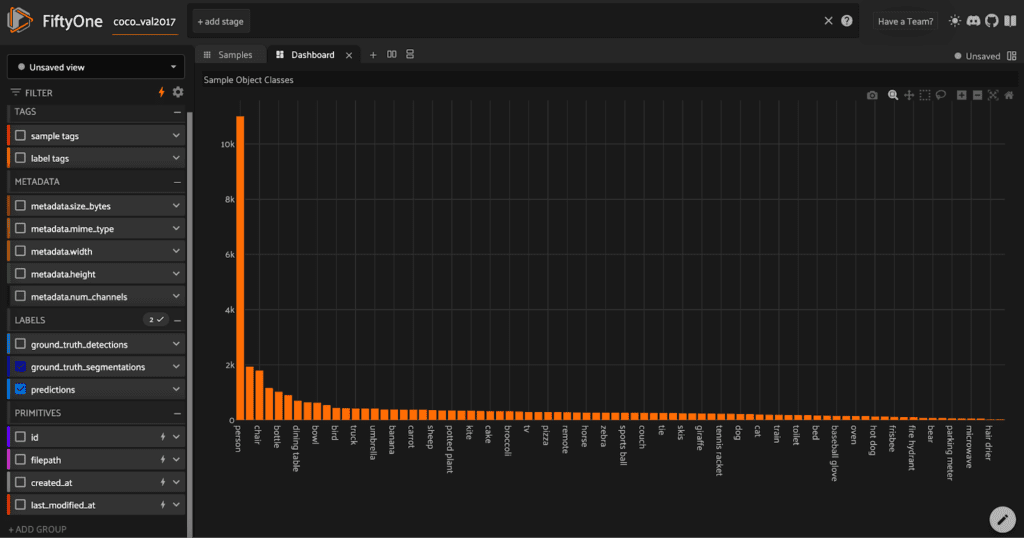

FiftyOne supports creating customized dashboards. Here, a categorical histogram shows the frequency of each ground truth class in the dataset.

• • Zoom in on segmentation masks to inspect boundary precision

• • Tag problematic samples for further review

These capabilities transform model debugging from guesswork into systematic analysis.

Model Evaluation

For instance segmentation, rigorous evaluation is crucial. FiftyOne simplifies this process:

results = dataset.evaluate_detections(
    "predictions",
    gt_field="ground_truth",
    eval_key="eval_masks",
    use_masks=True,
    compute_mAP=True
)
print("Mask mAP:", results.mAP())

Beyond aggregate metrics, FiftyOne stores per-sample evaluation results, enabling you to sort images by performance and focus on the most problematic cases.

Analyzing Results

Failure analysis is perhaps the most valuable component of a successful computer vision workflow. Through FiftyOne, you can:

• • Sort images by false positives or false negatives to immediately identify problem areas

• • Overlay ground truth masks and predicted masks to detect systematic errors

• • Group failures by object class, size, or occlusion levels to discover patterns

• • Perform error analysis on specific subsets to identify where your model struggles

This targeted approach ensures that you invest your improvement efforts where they’ll have the maximum impact.

Applications of Mask R-CNN

Mask R-CNN’s ability to provide instance-level segmentation makes it valuable across numerous fields:

Autonomous Driving

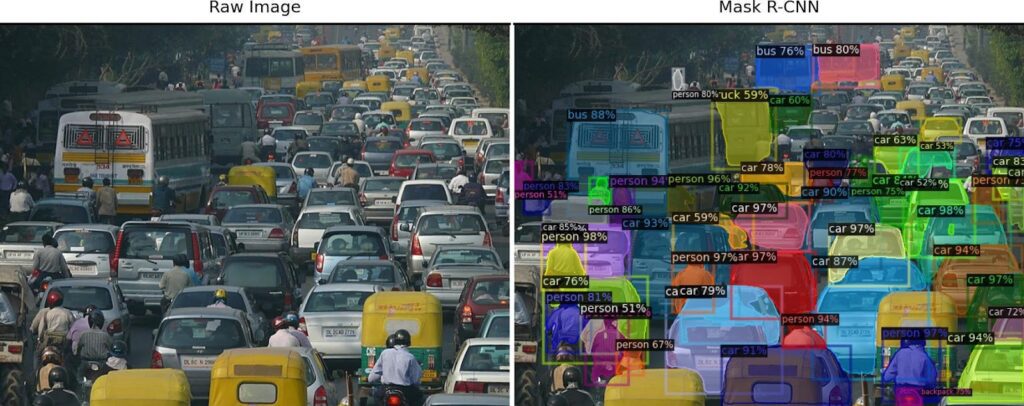

In autonomous vehicles, detecting and precisely delineating other traffic participants is crucial for path planning and collision avoidance. Mask R-CNN excels at handling the complex and dynamic scenes encountered in urban environments, where pedestrians, vehicles, and obstacles frequently overlap in the vehicle’s field of view.

Robotics and Manufacturing

For robots operating in cluttered environments, distinguishing individual objects is essential for precise manipulation. Instance segmentation enables robots to identify specific items for picking, even when partially occluded by other objects. In manufacturing settings, Mask R-CNN can detect defects, verify component placement, and assess assembly quality.

Medical Imaging

Medical applications demand extreme precision, making Mask R-CNN particularly valuable. The model can segment tumors, organs, or individual cells with high accuracy, supporting diagnosis, treatment planning, and research. Its ability to distinguish between multiple instances of the same class (such as individual cells) is especially relevant in histopathology.

Satellite and Aerial Imagery

When analyzing satellite imagery, separating individual buildings, vehicles, or land features is often necessary for tasks like urban planning, environmental monitoring, or traffic analysis. Mask R-CNN’s instance segmentation capabilities provide the detailed delineation required for these applications.

Conclusion

Mask R-CNN represents a significant advancement in computer vision, bridging the gap between object detection and pixel-level segmentation. By leveraging region proposals, ROI Align, and multi-task learning, it achieves remarkable accuracy in delineating individual object instances, even in challenging scenarios with overlapping objects or complex boundaries.

The combination of Mask R-CNN’s sophisticated architecture with FiftyOne’s data-centric workflow creates a powerful foundation for building robust instance segmentation solutions. Whether your application involves autonomous vehicles, medical imaging, robotics, or satellite imagery analysis, this approach allows you to not only implement state-of-the-art models but also understand their strengths and limitations in your specific domain.

As computer vision continues to advance, instance segmentation will remain a cornerstone technology for applications requiring detailed scene understanding. By mastering Mask R-CNN and adopting data-centric practices with tools like FiftyOne, you’ll be well-equipped to tackle these challenging visual perception tasks with confidence.
