Comprehensive Guide to Keypoint Detection for Object Recognition

Object recognition sits at the heart of modern AI, powering everything from unlocking your smartphone with a glance to helping self-driving cars navigate safely through traffic. It’s what enables machines to see, understand, and interact with the world around them making it one of the most critical tasks in today’s AI landscape. But as powerful as it is, traditional object recognition methods come with their own set of challenges.

Traditional AI methods usually rely on bounding boxes, the little rectangles that identify an important object. They are good at finding an object, but less adept at understanding what is really happening inside the same box. That’s where keypoint detection comes in. Keypoint detection is like a skeleton that understands and pinpoints precise locations on objects to understand shape, orientation and specific details.

Keypoints Explained

Keypoints act as landmarks of an object’s distinctive features, like eyes and nose on a face. They are precise, identifiable points that AI uses to create an accurate map of an object. In short, keypoints give AI a concise set of dots to understand and track, making detection tasks easier and reliable.

Computer vision and deep learning models learn to recognize and precisely pinpoint the object keypoints, even when objects are twisted, turned or even partially hidden, which bounding boxes fail to achieve. Bounding boxes provide simpler metadata, but they also simplify reality into basic shapes. Keypoints on other hand adapt to an object’s flexibility. They capture detailed information on an object’s exact shape and orientation.

As an example, the following Python code loads an image, runs a pre-trained SuperPoint model to find 2-D keypoints and their confidence scores, then overlays those points on the image.

from transformers import AutoImageProcessor, SuperPointForKeypointDetection
import torch
import matplotlib.pyplot as plt
from PIL import Image
import requests

image_path = "~/myimage.png” #  Set the image path here
image = Image.open(image_path)

# Initialize the model and processor
processor = AutoImageProcessor.from_pretrained("magic-leap-community/superpoint")
model = SuperPointForKeypointDetection.from_pretrained("magic-leap-community/superpoint")

inputs = processor(image, return_tensors="pt").to(model.device, model.dtype)
outputs = model(**inputs)

# Postprocess - change model_outputs to outputs here
image_sizes = [(image.size[1], image.size[0])]
outputs = processor.post_process_keypoint_detection(outputs, image_sizes)
keypoints = outputs[0]["keypoints"].detach().numpy()
scores = outputs[0]["scores"].detach().numpy()
image_width, image_height = image.size

plt.figure(figsize=(10, 10))
plt.axis('off')
plt.imshow(image)
plt.scatter(
   keypoints[:, 0],
   keypoints[:, 1],
   s=scores * 100,
   c='cyan',
   alpha=0.4
)
plt.show()

Keypoint Detection Techniques

Keypoint detection is critical to computer vision because it extracts a sparse set of highly repeatable anchor points that can be tracked, matched, or triangulated across frames. Modern systems achieve this by taking three complementary approaches.

Heatmap Regression

In heatmap regression, a convolutional network outputs a probability map for every key-point class. Each map is a grayscale image whose brighter pixels indicate a higher likelihood that the true key-point is located there.

During training, the target map is a 2-D Gaussian “bump” centered on the ground-truth coordinate. The network learns to convert a single point into a smooth probability surface that can later be collapsed back to sub-pixel accuracy.

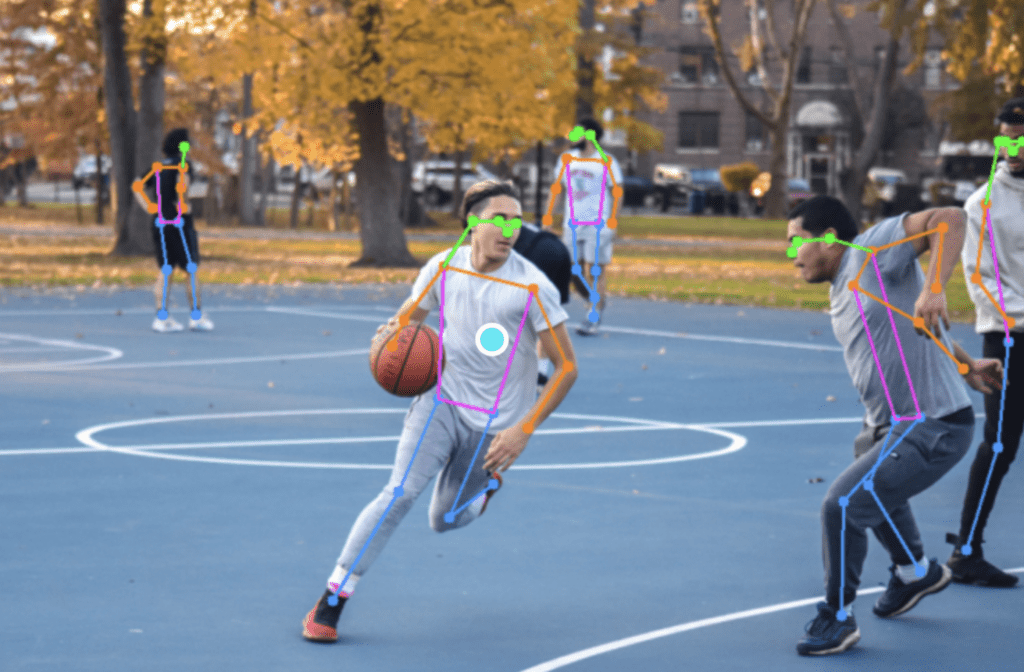

Pose Estimation

Pose estimation extends keypoint detection to full skeletons. The model finds joints such as elbows and knees and infers how they connect, recovering the subject’s spatial pose. Pose estimation is vital for augmented reality (AR) filters, motion capture, and robotics.

By chaining joints into kinematic graphs, the model tracks complex movements frame-by-frame with high temporal consistency.

Part Detection

Part detection decomposes an object into semantically meaningful components (e.g., wheel, door, handle). This approach allows downstream models to reason about each part’s geometry rather than treating the object as a single blob.

After it localizes sub-regions, the neural network can predict additional landmarks, boost overall key-point coverage, reduce ambiguity when objects overlap.

Using separate validation datasets to tune thresholds for each module further improves precision and ensures the three techniques generalize reliably in production.

Image Source

Putting Keypoint Detection to Use

Let’s now examine why these techniques matter in production systems. Keypoints provide geometric priors that models use to reason about human posture, object orientation, and fine-grained shapes. This information unlocks a spectrum of real-world capabilities that range from safer industrial automation to immersive consumer experiences.

Action Recognition

Skeletal keypoints help models to classify complex body movements in real time. Interactive gaming platforms, such as Kinect-style consoles. map a player’s joints to recognize dance steps, yoga poses, and other gestures. The same pipelines extend to surveillance and workplace safety, pose dynamics can flag falls, aggressive behavior, or incorrect ergonomic form.

Object Pose Estimation

As mentioned previously, pose estimation matches predicted keypoints to their 2D image projections to recover an object’s full pose in 3D space. Accurate orientation estimates are essential for robotic grasping, bin-picking, automated inspection, and augmented reality. In AR especially, even a few degrees of error can cause a gripper miss or visual drift.

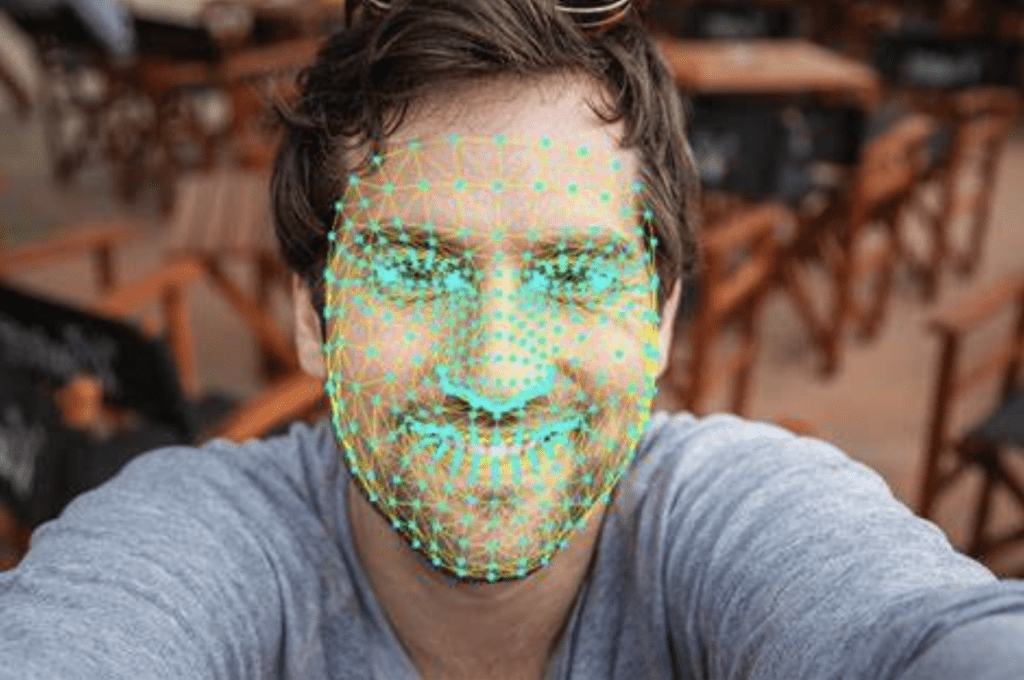

Facial Landmark Detection

High-resolution landmark models like HRNet locate dozens of reference points along the eyes, nose, mouth, and jawline. These landmarks drive autofocus and exposure control in smartphone cameras, power biometric verification systems, and support driver-attention and fatigue-monitoring solutions in automotive safety. They’re responsible for anchoring virtual sunglasses and other fun facial overlays in social apps.

Keypoint Detection Workflows with FiftyOne

FiftyOne is a computer-vision platform developed by Voxel51. It includes tooling for each stage of a keypoint detection pipeline, from dataset exploration and annotation review to view-based error analysis and production monitoring. The result is faster iteration, better model generalization, and simpler hand-offs between data engineers, labelers, and ML engineers.

Simplifying Model Development and Deployment

• Visual dataset exploration: Filter, search, and sort millions of images or video frames to audit class balance or locate samples where a model confused an elbow for a knee.
• Integrated annotation management: Connect to popular labeling tools like CVAT and maintain version-controlled keypoint annotations without manual file juggling.
• Smooth production transition: The same view layouts and evaluation panels used during R&D remain available when validating models on live data, and ensure a consistent feedback loop after deployment.

Keypoint-Specific Visualization Features

• Customizable skeletons that connect detected joints for cleaner pose inspection.
• Frame-by-frame tracking of keypoints in video to verify temporal stability.
• Instant anomaly surfacing: color-code low-confidence points or missing landmarks to spot label noise and model failure modes.

For example, the expression below surfaces every sample in which the predicted left_eye keypoint has confidence < 0.7:

dataset.filter_labels(
    "predictions",
    F("keypoints.detections.points.left_eye.confidence") < 0.7
)

Facilitating Training, Testing, and Error Analysis

• Balanced dataset curation: Quantify under-represented poses or body parts, then sample additional images to prevent bias.
• Error diagnostics: Measure Euclidean distance, PCK, or OKS for each landmark and visualize per-part histograms to trace systematic drift.
• Granular evaluation slicing: Compare overall mAP to performance on hard subsets (e.g., occluded faces, motion blur) to better target new data acquisition.

For example, the code snippet below computes class-specific mAP while restricting the metric to three facial landmarks:

results = dataset.evaluate_detections(
    "predictions",
    gt_field="ground_truth",
    eval_key="eval",
    compute_mAP=True,
    classes=["person"],
    keypoint_types=["nose", "left_eye", "right_eye"],
)
print(results.mAP())

Keypoint Detection Boosts Robotic Grasping: A Real-World Case Study

In pharmaceutical distribution, item-picking robots must handle blister packs, pill bottles, cartons, and tubes that arrive in every orientation. McKesson’s first generation of KNAPP Pick-it-Easy Robots relied on bounding-box detection. The system could find an object in the tote but could not judge the angle of a bottle cap or the position of a tiny blister-pack tab. Misaligned grasps led to slips and re-picks, interrupting the high-throughput flow the warehouse needed.

To eliminate those blind spots, McKesson, KNAPP, and Covariant retrained the vision stack around keypoint detection. A CenterNet-style network now predicts a sparse set of landmarks, giving the motion planner an exact pose for each SKU. In effect, every item carries its own grasp “road-map,” allowing the robot to choose both where and how to grip instead of merely where it is. The gripper’s path is further refined in real time with depth data, so even objects wedged at odd angles in a cluttered bin are approached along a collision-free route.

Internal KPIs collected after the upgrade show a first-attempt pick success rate above 90 percent for single items and roughly 85 percent in cluttered totes, cutting repeated attempts almost in half. Because fewer picks are repeated, the cell maintains continuous flow. McKesson reports round-the-clock operation without extra staffing, and similar Covariant installations demonstrate throughputs of up to 515 picks per hour with under 0.1 percent human intervention. The vision makeover also future-proofs the line: when new medications arrive, the model adapts with a short fine-tuning cycle rather than weeks of rule writing.

Future of Keypoint Detection in Object Recognition

Keypoint detection is moving well beyond classical CNN pipelines. Recent research pairs landmark extraction with vision transformers (ViTs) that model long-range relationships across an image, allowing the network to reason jointly about spatial context and fine-grained pose. These transformer-keypoint hybrids achieve higher accuracy on crowded-scene benchmarks while maintaining real-time speed when distilled or quantized.

Another direction is edge deployment. Hardware-efficient backbones now let factories, traffic cameras, and consumer IoT devices run full landmark models locally. Processing on the device trims latency, safeguards privacy, and reduces cloud bandwidth. These benefits are driving rapid adoption in retail analytics, in-cab driver monitoring, and smart-city sensing.

Keypoints are also becoming a bridge to 3-D scene understanding. By predicting landmark coordinates in world space, networks can reconstruct an object’s geometry, estimate scale, and recover complete poses. These capabilities underpin robotic bin-picking, AR object insertion, and digital-twin pipelines, where depth-aware perception is mandatory.

Finally, the field is tackling the annotation bottleneck with self-supervised and weakly supervised learning. Techniques such as contrastive pre-text tasks and equivariance constraints let models discover stable landmarks without exhaustive human labels. This not only slashes labeling cost but often yields more transferable representations for downstream tasks.

Taken together, these advances position keypoint detection as a core primitive for the next generation of vision systems.

Conclusion

Keypoint detection has matured from a research benchmark into a foundational building block for modern computer-vision systems. By localizing precise anatomical or structural landmarks, it supplies the geometric cues required for downstream tasks such as human-pose analysis, 3D object pose, fine-grained face alignment, and 3-D reconstruction. These capabilities now support practical deployments in areas as diverse as surgical navigation, robotic picking, driver-monitoring, motion-capture sports analytics, and AR content creation.

Yet the technique remains data-hungry. Engineers must curate balanced datasets, visualize dense landmark annotations, and verify performance on edge cases before moving to production. FiftyOne addresses these pain points directly. Its unified interface lets teams import multimodal datasets, overlay keypoint skeletons on images or video, filter for low-confidence landmarks, and compute metrics such as PCK or OKS at scale. Integrated connectors to common labeling tools and export pipelines shorten iteration loops, lowering both cost and time to deployment.

In short, keypoint detection reshapes how machines infer structure and intent, and platforms like FiftyOne make that power accessible to practitioners at any stage. As annotation workflows, self-supervised pretraining, and edge-optimized models continue to advance, the barrier to building landmark-aware applications will fall even further, opening new opportunities across medicine, manufacturing, security, and interactive media.
