A
convolutional neural network (CNN) is a deep learning model architecture that has become the workhorse of modern computer vision. CNNs learn hierarchical visual patterns—from simple edges to full objects—directly from raw pixels. Their breakthrough moment came in 2012 when
AlexNet smashed previous records on the ImageNet challenge, igniting the deep‑learning revolution.

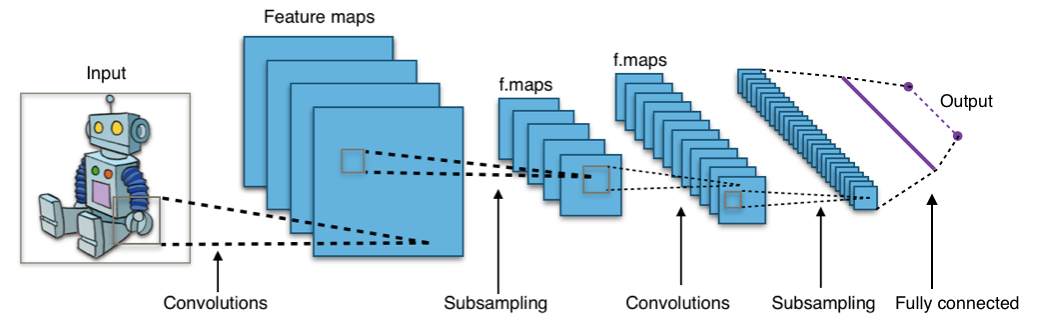

Key Layers in a CNN
A typical CNN is built from a series of repeating blocks that transform an input image into feature representations:
- Convolutional layers: small learned filters slide across the image to create feature maps, reusing the same weights across space for parameter efficiency.
- ReLU activations: fast, simple non‑linearities that keep the signal alive by zeroing out negatives.
- Pooling layers (e.g., max pooling): downsample feature maps, making the representation more robust to small translations while reducing computation.
- Fully connected layers: flatten the learned features and map them to output predictions such as class probabilities.
Why CNNs Excel at Vision Tasks
Because convolution and pooling bake spatial locality and weight sharing into the network, CNNs are superb at capturing patterns that repeat across an image. This makes them the go‑to model for tasks like image classification, object detection (e.g., YOLO, Faster R‑CNN) and semantic/instance segmentation (e.g., U‑Net, Mask R‑CNN). CNNs can also handle video, 3‑D data, and even audio when input is arranged spatially.
Evolution of CNN Architectures
After AlexNet proved depth and GPUs could unlock performance, researchers pushed deeper and wider designs:
VGG‑16/19 showed that stacking many small 3×3 filters worked well,
Inception used parallel filter paths for efficiency, and
ResNet introduced residual (skip) connections so networks with 100+ layers could train without vanishing gradients. Successors like DenseNet and EfficientNet refine these ideas for better accuracy‑to‑compute trade‑offs.
Visualizing & Debugging CNNs with FiftyOne
Training a CNN is only half the battle—you also need to inspect how it behaves on real data. Voxel51’s
FiftyOne lets you import model predictions, browse images, and click directly into failure cases. Whether you’re generating a confusion matrix or plotting precision‑recall curves,
FiftyOne’s evaluation toolkit helps you spot misclassifications, diagnose bias, and iterate on both data and model to boost performance.
